Ansible Playbook Format

I need help laying out the YAML code below in an Ansible playbook:

 --- - hosts: localhost gather_facts: no tasks: - debug: changed_when: true notify: test_handler1 - debug: changed_when: true notify: test_handler1 - debug: changed_when: true notify: test_handler2 handlers: - name: test_handler1 debug: msg: Trevor needs help - name: test_handler2 debug: msg: Trevor needs help

Trevor "Red Hat Evangelist" Chandler
Labels (3)
5 Replies
Akyuz_Remzi
Flight Engineer
Flight Engineer
  • 270 Views

Enjoy a happ and productive weekend with ansible

shashi01
Moderator
Moderator
  • 241 Views

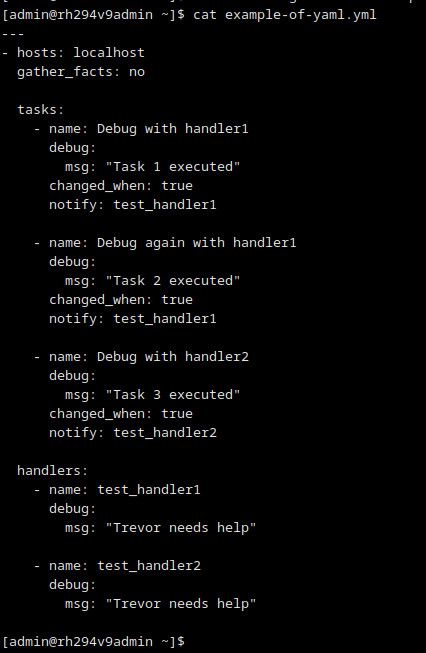

@Trevor  You can check this version as well

Screenshot From 2025-09-22 03-19-54.png

Chetan_Tiwary_
Community Manager
Community Manager
  • 177 Views

@Trevor You asked for help while navigating the waters of Ansible!!!

1. A playbook begins with the three dashes (---), which is a YAML convention to signify the start of a new document. The playbook itself is essentially a list of "plays." Each play is a complete set of instructions, telling Ansible which hosts to target and what specific tasks to execute on them.

2. hosts: localhost is a simple but important command. It tells Ansible to run all the tasks that follow on your own machine, not on any remote server. The gather_facts: no line is a useful optimization. It tells Ansible to skip collecting system information, which can make your playbook run much faster if you don't need that data for your tasks.

3. tasks : Under the tasks: section, you wil find a list of all the actions Ansible will perform in the order you hve listed them. You are using the debug: module here in the tasks section , which is a great tool for printing messages to the screen. It is perfect for testing or seeing variable data as you build a playbook.

current structure of your playbook at this stage :

---
- hosts: localhost
  gather_facts: no
  tasks:

4. Since tasks: is a block which contains the ordered list of actions Ansible will try on the target host and you are using a trick with debug module i.e changed_when: true bcz normally, a debug task doesn't change anything, but this line forces Ansible to report it as "changed." This is the key to making the next part work.

5. notify: test_handler1 or notify: test_handler2 triggers a named handler if the task is marked as changed. Handlers only run at the end of a play unless called by a task.

current structure of your playbook at this stage :



---
- hosts: localhost
  gather_facts: no
  tasks:
    - debug:
        msg: "Some task"
      changed_when: true
      notify: test_handler1
    - debug:
        msg: "Some other task"
      changed_when: true
      notify: test_handler1
    - debug:
        msg: "Another task"
      changed_when: true
      notify: test_handler2



Notice ( in the above playbook ) how you have 3 sub taks as a list of ordered tasks nested under ( indentated ) the main tasks block.

6. Now you need to create those handlers . Handlers are special tasks that are only ever executed when a task explicitly notifies them.

You define them in a separate handlers: block, and each one needs a name: so you can refer to it. In your example, both handlers will print the same message, "Trevor needs help," when they are called.

Final structure of your playbook now :



---
- hosts: localhost
  gather_facts: no
  tasks:
    - debug:
        msg: "Some task"
      changed_when: true
      notify: test_handler1
    - debug:
        msg: "Some other task"
      changed_when: true
      notify: test_handler1
    - debug:
        msg: "Another task"
      changed_when: true
      notify: test_handler2
  handlers:
    - name: test_handler1
      debug:
        msg: Trevor needs help
    - name: test_handler2
      debug:
        msg: Trevor needs help





Ansible executes tasks in a very specific, predictable order. Here's a breakdown of what happens in your playbook:

Task Execution

Ansible works through your tasks one by one, in the exact order you have listed them. In this case:

Task A runs. Because yo have set changed_when: true, Ansible marks it as "changed" and queues up a notification for test_handler1.

Task B runs. It also reports a change and, once again, queues up a notification for test_handler1.

Task C runs. It reports a change and queues a notification for test_handler2.

Now the Handler Execution:

After all the tasks in the play have been completed, Ansible moves on to running the handlers it was notified about.

Ansible runs test_handler1 first. It's crucial to understand that even though two separate tasks notified it, the handler will only run one single time. Handlers automatically deduplicate notifications within a single play, ensuring actions like a service restart only happen once.

Next, Ansible runs test_handler2.

It's also important to remember that handlers run in the order they are defined in the handlers: section of your playbook, not in the order they were notified.



Trevor
Commander Commander
Commander
  • 168 Views

Chetan, you're forever the one to provide an explanation, that doubles as
a complete lesson!!!!



Trevor "Red Hat Evangelist" Chandler
Travis
Moderator
Moderator
  • 127 Views

@Trevor -

I generally have some quick slides for Ansible overview and tons of sample playbooks that I provide with courses. I gave up making up useful examples so some of my playbooks do nothing but instead have dummy tasks using the debug module to show concepts.

https://github.com/tmichett/AnsiblePlaybooks

https://github.com/tmichett/RH294

I've also attached two presentations here that might help you. One is a higher-level overview of containers and the other is a general AAP primer where I tried to illustrate to students playbooks and YAML formatting explaining the various indentation layers in YAML.

Travis Michette, RHCA XIII
https://rhtapps.redhat.com/verify?certId=111-134-086
SENIOR TECHNICAL INSTRUCTOR / CERTIFIED INSTRUCTOR AND EXAMINER
